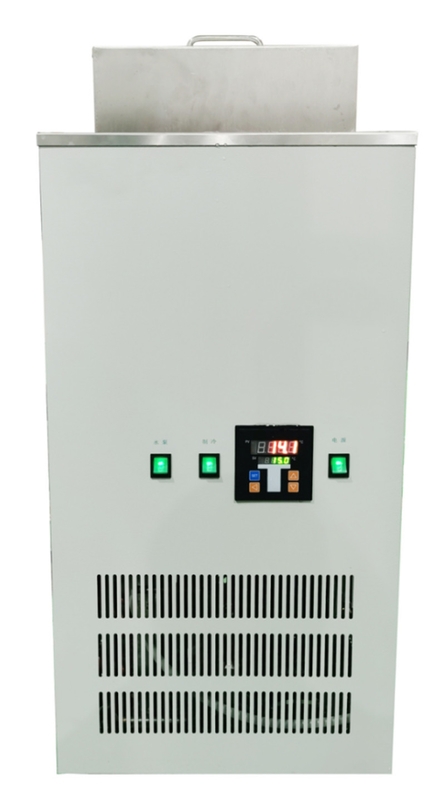

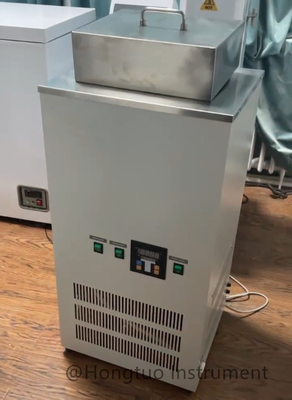

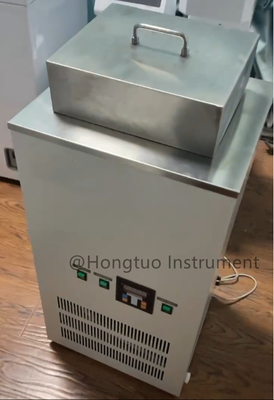

Dichloromethane Immersion Test Machine HT-DI

Dichloromethane Immersion Test Machine HT-DI

Introduction:

Used for dichloromethane immersion test of plastic pipes, fittings, sheets, etc. Widely used in the production, inspection and research of pipes, fittings and sheets.

Features:

1.The thermal insulation system uses an inner liner to wrap the insulation as a whole. The material uses two kinds of insulation materials, which have good thermal insulation performance and significant energy-saving benefits in long-term use.

2.When heating or cooling, the outer box is still close to room temperature, which greatly improves the safety of the whole machine and saves more than 70% of power consumption.

3.The overall material is 304 stainless steel.

4.Built-in heater, high heat exchange efficiency.

5.The refrigeration device is external, which has no effect on the laboratory temperature and no noise in midsummer.

Ø6.The box lid is opened by a gas spring. After opening, it should meet the laboratory space.

Ø7.Opening the lid is reliable, safe and convenient.

Ø8.The lid of the box is sealed with silicone rubber strips, so there is no air leakage at high temperatures.

Ø9.The structure frame box bottom has large load-bearing capacity and strong deformation resistance.

Ø10.The temperature control system uses brand-name leakage protection devices to protect people’s safety in a timely manner.

Standards:

Conforms to GB/T13526-2007 methylene chloride immersion test method for rigid polyvinyl chloride (PVC-U) pipes.

Technical Parameter:

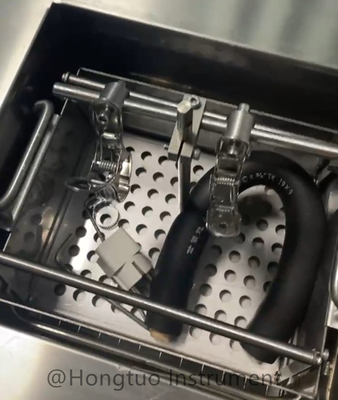

1.Container specification: 260x210x120mm;

2.Temperature control range: 10-50℃ (with heating and cooling device);

3.Temperature control accuracy: ±0.5℃;

4.Display accuracy: 0.1℃;

5.Timing range: 0-99 minutes;

6.Timing accuracy: 1S;

7.Dimensions: 660X660X800mm;

8.Power supply: 220v 50Hz 3KW.
