Guangdong Hongtuo Instrument Technology Co.,Ltd
 |
| Place of Origin: | China |
| Brand Name: | Dahometer |
| Certification: | ISO CE |
| Model Number: | DH-FB |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard Export Wooden Case |
| Delivery Time: | 7days |
| Payment Terms: | T/T, D/A, Western Union |
| Supply Ability: | 1000 Set Per Months |
| Product Name:: | Efficient Fall Ball Impact Testing Machine/Equipment | Drop Control Method:: | DC Electromagnetic Control |
|---|---|---|---|
| Drop Height Range:: | 50-1500/2000mm(Minimum Scale 1mm) | Power Supply:: | 220V/50Hz, |
| Weight: | About 50/80kg | Display Method:: | Ruler |
| Highlight: | Electromagnetic Control Ball Drop Impact Tester,ASTM Falling Ball Impact Tester,220V Falling Ball Impact Tester |
||

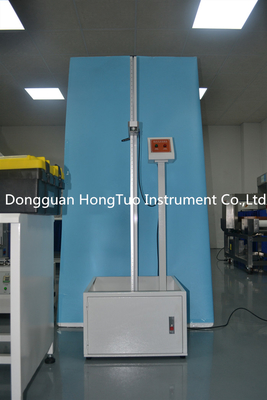

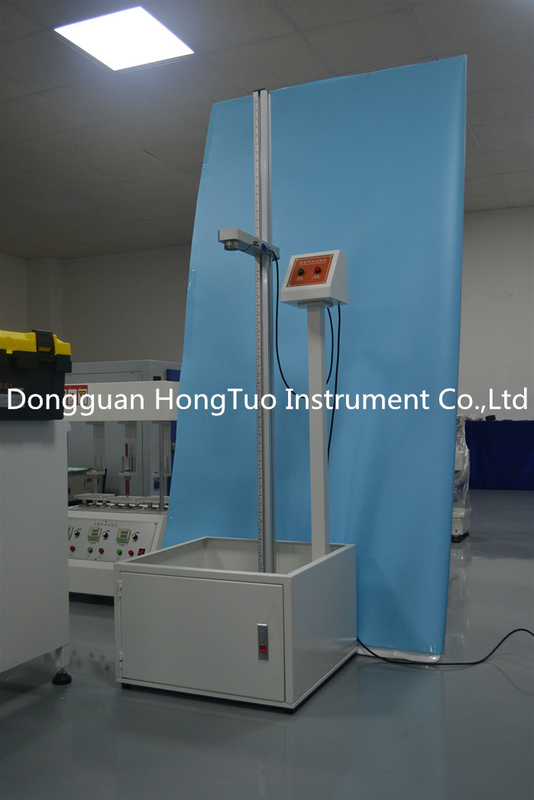

ASTM Fall Ball Impact Testing Machine Efficient Falling Ball Impact Tester Ball Drop Impact Tester
This tester is used for testing the fastness of plastic, ceramics, glass fiber,etc. Uses certain weight steel ball and adjust to certain height to let it fall freely and impact test sample. Then check the sample damage degree to judge the sample quality. Electromagnetism sucker and the ball will be absorbed automatically. Press the dropping key, the steel ball will be released instantly and fall to impact the sample surface. The drop height can be adjusted and there are altitude scale to measure dropping height.
Standards:
This device complies with JIS-K6745, A5430 test standard.
Technical Specification:
| Item | Specification |
| Drop control method | DC electromagnetic control |
| Display method | Ruler |
| Drop height range | 50-1500/2000mm(Minimum scale 1mm) |
| Steel ball weight |
67g,130g,198g,225g,357g,533g Optional:112.198.225.357.533.1041.2280g |
| Power supply | 220V/50Hz,2A |
| Overall size | 500*500*1700/2100mm |
| Weight | Around 50/80kg |
Main configuration
| Item | Specification | Place of Origin and Brand Name |
| Controller | HongTuo | |
| Electromagnet | HongTuo | |
| Relay | AIKS | |
| Box | Paint | |
| Testing stand | Aluminum profile | jianMei |
| Material fixing fixture | 1 pcs | |
| Power supply | 1 pcs |
|
